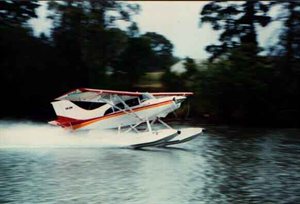

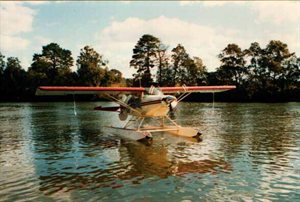

MAULE M7-235B STAR ROCKET FLOAT PLANE

Float Type: Aqua Floats by Capre 2400
Float Total Weight: 391lbs
Float Total Length: 18ft
Engine (Carburetor/Fuel Injection): Lycoming O-540-J1A5D / IO-540-W1A5D
Propeller, Hartzel Constant Speed, 2 Blade: 81inch
Wing Span: 32ft 9inches
Wing Area: 165.6sq ft
Length: 23ft 6inches
Height: 9.7ft
Cabin Width: 1.07m
Confguration: 5 place
Gross Weight: 2750lbs
Empty Weight: 1847lbs
Useful Load: 903lbs
Fuel Capacity: 73gals
Stall Speed (Full flaps, Power Off): 40mph
Take Off Roll: 750ft
Take Off at Gross over 50ft Obstacle: 1250ft
Rate of Climb: 1350fpm
Land Roll: 800ft
Land at Gross over 50ft Obstacle: 1000ft
Best Climb Speed: 90mph
Service Ceiling: 17 000ft
Fuel Consumption (75% power): 12/11gph
Range: 815/889mi
Speed Max: 130kts
Cruise (75% power opt. alt.): 124kts
Flap Settings: -7, 0, 24, 40°
